HRBW-50N Hand/Crash Rails

  • HRBW-50N
  • 3D View

HRBW-50N

3D View

  • null
    Acrovyn PVC-Free & Timber

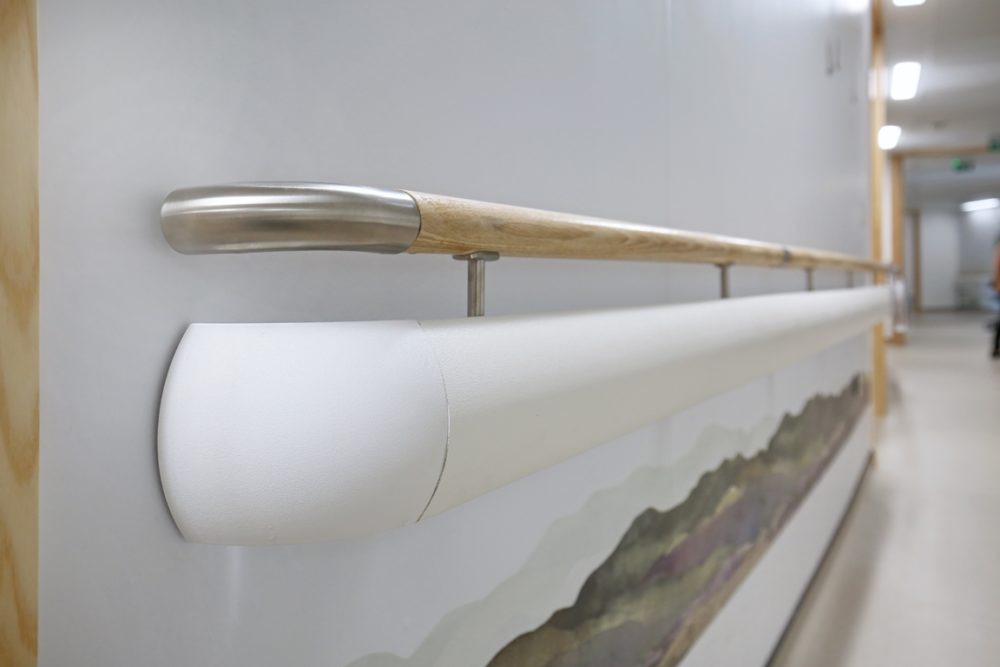

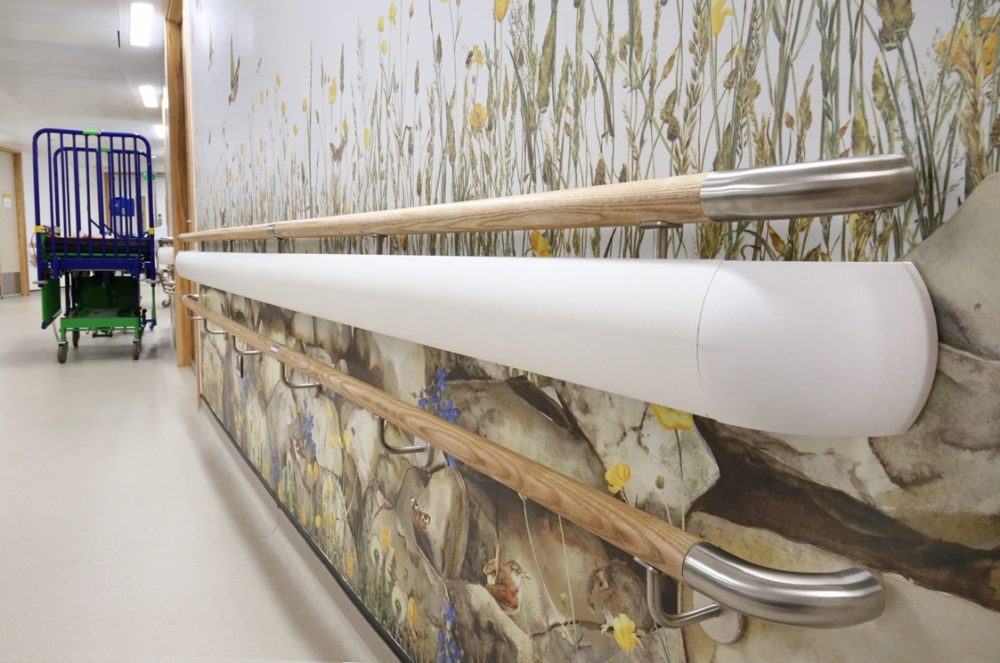

220mm high, HRBW-50N combines a solid timber handrail and a PVC-Free crash rail on a stainless steel bracket to provide mobility support and impact protection.

  • null
    Heavy Duty
  • null
    BS 8300 Compliant
  • null
    Dual Colour
  • Stylish, code compliant hand/crash rails for busy circulation areas
  • 40mm Ø solid timber handrail with stainless steel accessories for secure, comfortable grip
  • 127mm high crash rail with curved cover over continuous aluminium retainer and shock-absorbing cushion for effective impact protection
  • Infill strip closes off retainer channel for ease of cleaning
  • Mounted on robust stainless steel brackets
  • null
    Solid Colours
    Acrovyn PVC-Free (15)
  • null
    Timber
    Oak (4) | Beech (4) | Maple (4)
DEMANDER UN ÉCHANTILLON

Jump to

MOUNTING OPTIONS
COLOURS & FINISHES
DOWNLOADS
ACCESSORIES

Mounting

Colours & Finishes

  • null
    Solid Colours
    Acrovyn PVC-Free (15)
  • null
    Timber
    Oak (4) | Beech (4) | Maple (4)
  • Acrovyn PVC-Free (15)
  • Timber Handrail (12)

Acrovyn PVC-Free (15)

Due to the limitations of print and computer screens, actual colours may vary. We recommend making any colour selections from our free of charge samples service.

Approximate LRV values for CS Acrovyn colours and finishes have been determined using the CIE Y value measurement method.

Timber Handrail (12)

Due to the limitations of print and computer screens, actual colours may vary. We recommend making any colour selections from our free of charge samples service.

Stock Lengths & Fixings

  • Timber handrail: varies depending on species and availability
  • Acrovyn PVC-Free: 3.0m
  • Brackets at max. 800mm centres; fixing into studwork or pattresses is recommended

Accessoires

Various accessories are available to aid the installation of our products, or to enhance their look.
  • End caps
  • External corners
  • Internal corners available for handrail part
  • Stainless steel mounting brackets
  • Vertical accent trims for crash rail (optional): Black (standard) or Light Grey
